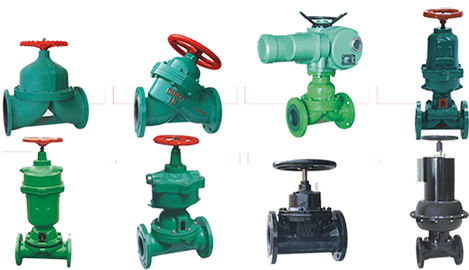

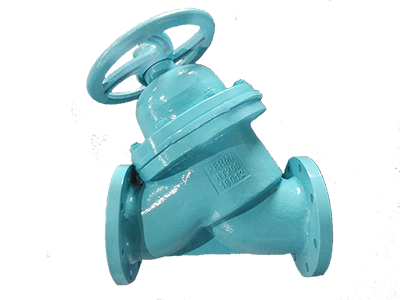

Diaphragm Valves

Size DN15 ~ DN350

Pressure Rating:PN6,PN10,PN16 Connections: Flange

Operation: Hand wheel, Electric Actuator, Pneumatic Actuator

Casting Material: WCB, Cast Iron, Stainless steel, PVC etc

Type: Straight type, Weir Type

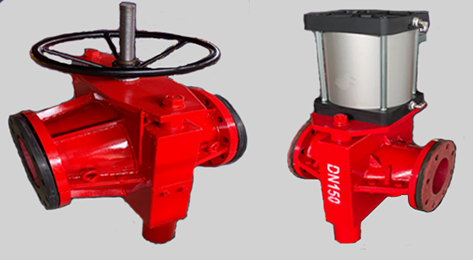

Pinch Valves

Size: DN15 ~ DN2000

Pressure Rating: 0.1~1.5MPa

Connections: Flange, BW welding

Operation: Handwheel , Electric Actuator, Gear Box, Pneumatic Actuator, Hydraulic actuator

DN15 ~DN200: Material: Carbon steel, Cast Iron, Aluminum, Stainless steel.

DN250~DN2000: Material: 45# Steel, Stainless steel Plate welding

Sleeve Material: Natural Rubber, EPDM, Nitril rubber, Viton etc.
